In today’s rapidly evolving power distribution landscape, box type substations have become a crucial solution for ensuring reliable electricity delivery in urban and industrial environments.
According to a report by the International Energy Agency (IEA), global demand for distribution substations is expected to grow steadily at a CAGR of over 6.2% by 2030, driven by urbanization, renewable energy integration, and increasing grid modernization projects.
What is an American Box Type Substation?

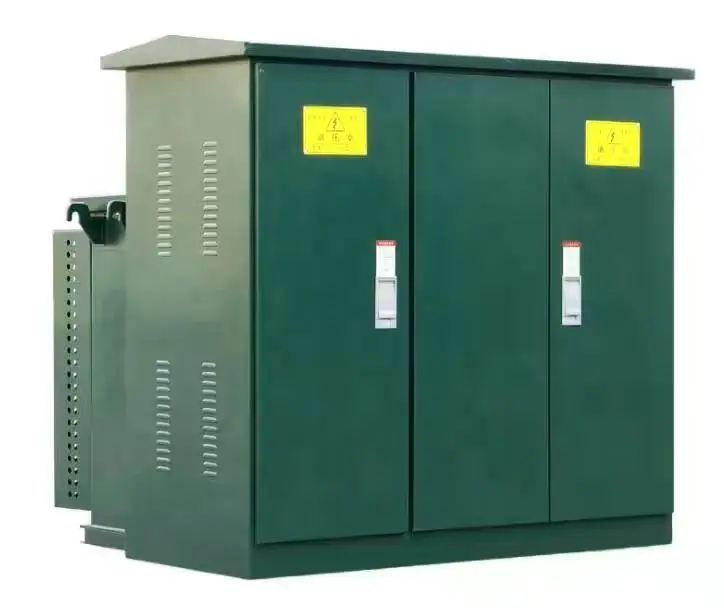

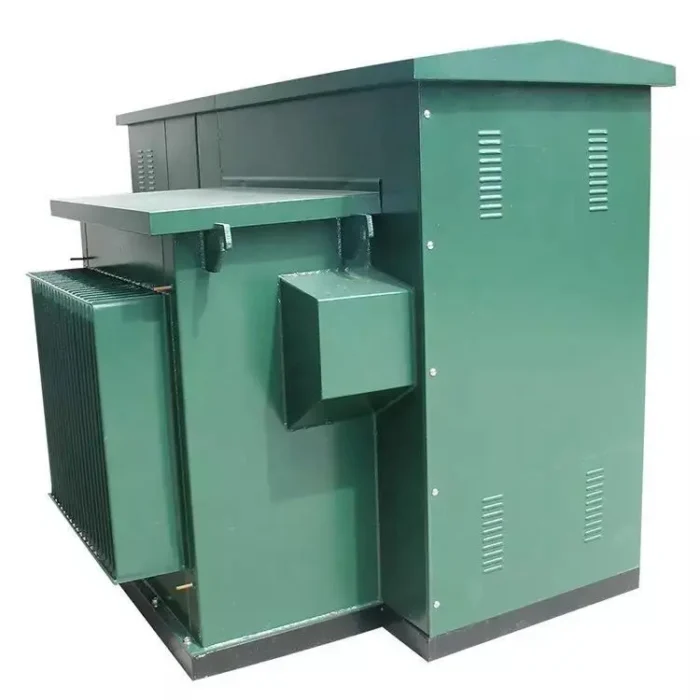

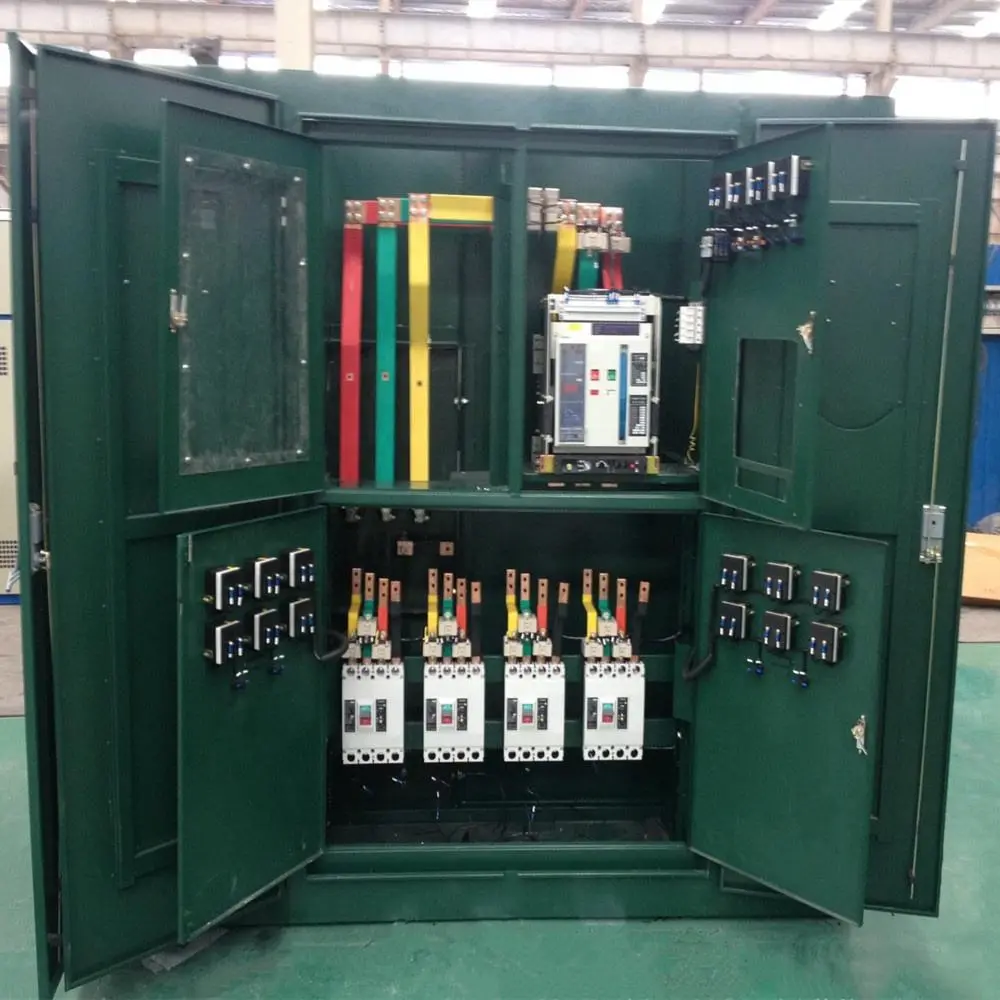

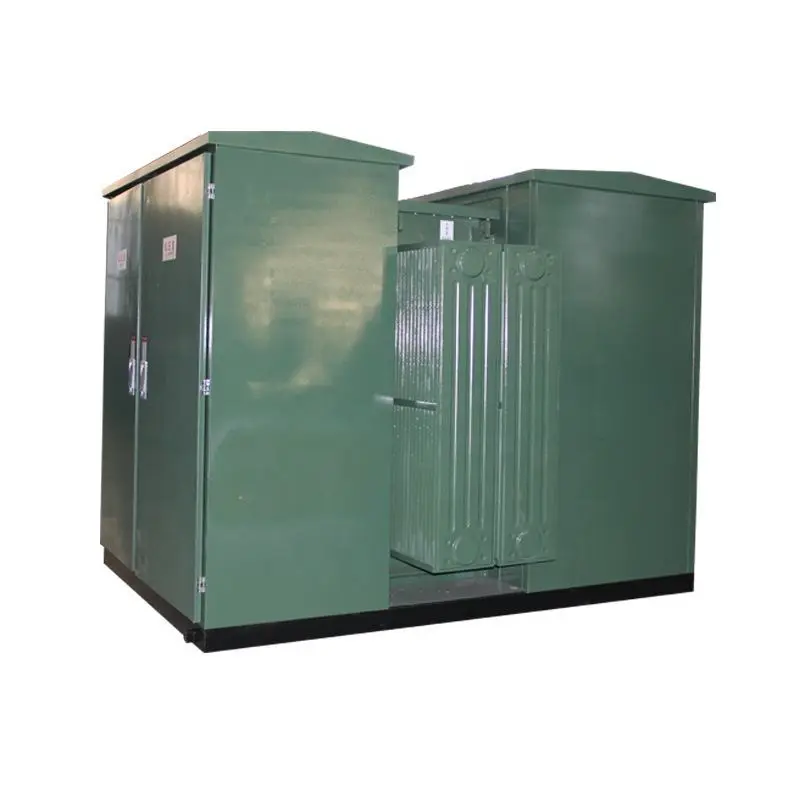

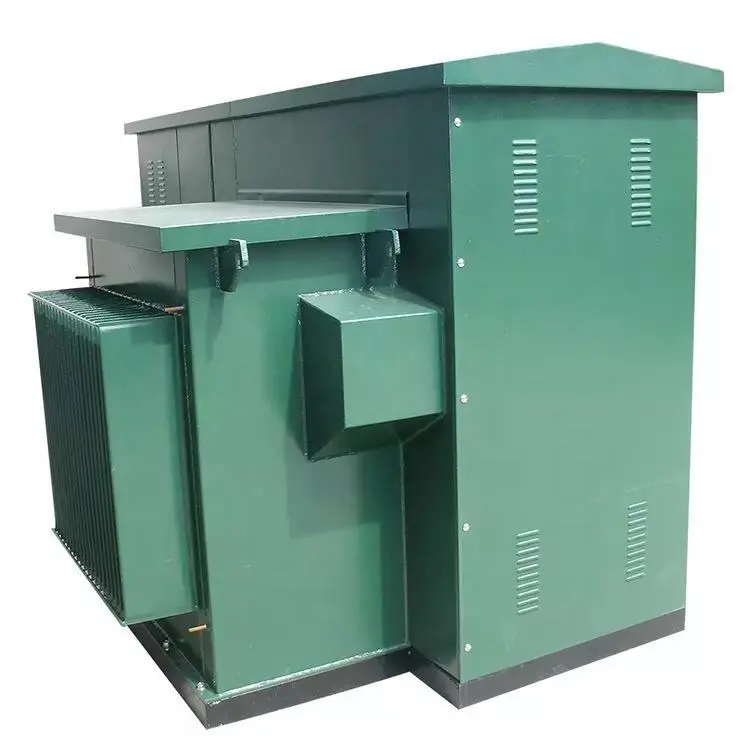

An American-style box type substation is a pre-installed, pad-mounted power distribution solution that integrates multiple components into a single, compact unit. It typically includes:
- High-voltage switchgear
- pad-mounted transformer
- Low-voltage distribution panel
- Protective relays and monitoring systems
Unlike traditional substations, American-style box type substations feature front-access design and pad-mounted installation, making them ideal for residential communities, commercial complexes, renewable energy plants, and industrial parks.
Key Advantages of Box Type Substations:
- Fully pre-installed for fast on-site deployment
- Compact footprint, ideal for urban environments
- Integrated safety systems to meet IEEE, IEC, and ANSI standards
- Cost-effective with minimal civil engineering requirements
Parameter List
|
Rated Power(KVA)
|
Lows(w)
|
Dimension(mm)
|
Weight(kg)
|
||||
|
No-load
|
On-load
|
W
|
D
|
H
|
Oil
|
Total
|
|
|
75
|
180
|
1250
|
1390
|
910
|
1430
|
120
|
645
|
|
150
|
280
|
2200
|
1510
|
980
|
1530
|
201
|
989
|
|
300
|
480
|
3650
|
1660
|
1080
|
1680
|
260
|
1415
|
|
500
|
680
|
5100
|
1810
|
1160
|
1790
|
325
|
1905
|
|
750
|
980
|
7500
|
2030
|
1300
|
2030
|
535
|
2755
|
|
1000
|
1150
|
10300
|
1651
|
1549
|
1854
|
650
|
3255
|
|
1500
|
1640
|
14500
|
2210
|
1470
|
2150
|
748
|
5835
|
|
2000
|
2160
|
20645
|
2380
|
1600
|
2220
|
950
|
6430
|
|
2500
|
2680
|
277886
|
3070
|
1650
|
2330
|
1020
|
8665
|
Applications of 150kVA Box Type Substations
The 150kVA Outdoor Pad-Mounted Transformer is widely applied across multiple sectors due to its flexibility, reliability, and compliance with international standards.
3.1 Residential & Commercial Power Distribution
- Apartment complexes and shopping malls
- Smart city power infrastructure
- Public facilities requiring stable and safe electricity
3.2 Industrial Parks & Manufacturing Facilities
- Supports high-power machinery and production lines
- Ensures stable voltage for sensitive equipment
- Minimizes downtime caused by power fluctuations
3.3 Renewable Energy Integration
With the rapid growth of solar PV and wind power systems, 150kVA box type substations are widely used to step up or step down voltages between generation sources and the grid.
Reference: According to IEEE Power & Energy Society, distributed renewable integration requires advanced distribution substations to stabilize fluctuating generation and ensure grid reliability.
Comparison: American vs. European Box Type Substations
| Aspect | American Style | European Style |
|---|---|---|
| Design | Front-access, compact, integrated | Modular, separate compartments |
| Installation | Pad-mounted, pre-installed | Requires partial on-site assembly |
| Maintenance | Easier due to integrated monitoring | More complex due to separated units |
| Cost | Lower due to prefabrication | Higher installation cost |
Why Choose TRONKI as Your Substation Manufacturer
As one of the leading substation manufacturers, TRONKI Electric provides high-quality, internationally certified distribution substations and pad-mounted transformers.
Key Strengths:
- Over 20 years of expertise in transformer & substation manufacturing
- Fully compliant with IEC, IEEE, ANSI, and ISO9001 certifications
- Customizable voltage levels and configurations
- Professional R&D and quality control teams
- Global project references in Asia, Europe, Middle East, and North America
Buying Guide: How to Choose the Right Box Type Substation
When selecting a 150kVA American box type substation, consider the following factors:
- Load Requirements – Match transformer capacity to your actual consumption.
- Primary & Secondary Voltages – Ensure compatibility with local grid standards.
- Environmental Conditions – Choose appropriate IP rating and cooling systems.
- Safety Standards – Prioritize models certified by IEEE, IEC, and ANSI.
- Substation Manufacturer Reputation – Work with trusted companies like TRONKI to ensure product reliability.
FAQs
Q1. What is a box type substation used for?
A box type substation is used to step down or step up voltage for safe and reliable power distribution. It integrates transformer, switchgear, and protection systems into one unit.
Q2. Is a 150kVA transformer suitable for residential areas?
Yes. A 150kVA transformer is widely used in small residential communities, commercial buildings, and renewable energy applications due to its compact size and efficiency.
Q3. What’s the difference between American and European box substations?
American substations are pad-mounted and pre-installed, making them quicker to deploy and easier to maintain, while European substations use modular compartments and require more on-site assembly.
Conclusion
The 150kVA Outdoor Pad-Mounted Transformer Pre-installed American Box Type Substation is an ideal solution for modern distribution substations, combining compact design, operational reliability, and international compliance.
At TRONKI Electric, we specialize in customized box type substations and pad-mounted transformers to meet diverse global requirements.
Contact us today to get a free consultation, technical specifications, and a competitive quote tailored to your project needs.
