Power Transformers are an essential part of electrical systems, and among the numerous types, 3-phase transformers are most important for high-power commercial, industrial, and utility uses. The transformers have numerous advantages over single-phase systems, especially with regards to sustaining heavier loads and ensuring a reliable power supply.
In this blog, we will discuss different types of 3-phase transformers, their configurations, and where you would typically find them applied. Whether you are curious as to how they work or need some data on how to select the right transformer to meet your needs, this article will provide you with all the information you need.
What is a 3-Phase Transformer?
A 3-phase transformer is a type of electrical transformer used to step up or step down the voltage in a 3-phase electrical system. These systems are widely used in power generation, transmission, and distribution due to their efficiency in delivering large amounts of power. Unlike single-phase systems, which use a single alternating current (AC), 3-phase systems use three alternating currents that are offset by 120 degrees, providing a more stable and continuous power flow.
A 3-phase transformer typically consists of three primary windings and three secondary windings, corresponding to each phase in the system. It works by transferring energy between circuits via electromagnetic induction, maintaining the same frequency but altering the voltage.
How Does a 3-Phase Transformer Work?
In a 3-phase transformer, the primary windings are connected to the power supply, while the secondary windings are connected to the load. The transformer operates on the principle of electromagnetic induction, where a time-varying magnetic field induces an electromotive force (emf) in the secondary windings, which either steps up or steps down the voltage.
The configuration of the transformer’s windings determines the relationship between the primary and secondary voltages, which can be adjusted based on the application.
Types of 3-Phase Transformers
3-phase transformers can be categorized based on their construction and design. The two most common types are core-type and shell-type transformers:
1. Core-Type Transformers
In a core-type 3-phase transformer, the core consists of three limbs, with each limb carrying one of the three phases. The primary and secondary windings are wound on the same core, with the high-voltage winding typically wrapped around the low-voltage winding. This type of transformer is commonly used for high-voltage applications, as the core provides a strong magnetic link between the windings.
2. Shell-Type Transformers
Shell-type transformers are constructed with a core that surrounds the windings. These transformers have five limbs in total, with three main limbs for the primary and secondary windings and two outer limbs that help return the magnetic flux. Shell-type transformers offer better protection against external factors such as mechanical stress and are typically used in lower-voltage applications.
3-Phase Transformer Configurations
There are several ways to connect the windings in a 3-phase transformer, and each configuration has its unique benefits. The most common configurations are star (wye) and delta:
1. Star (Wye) Configuration
In the star configuration, one end of each winding is connected to a common neutral point, forming a ‘Y’ shape. This allows for a neutral line, which can be grounded, offering better safety and balance in the system. Star-configured transformers are often used in high-voltage applications for their ability to handle a wide range of voltage levels and provide a stable output.
2. Delta Configuration
The delta configuration connects the windings in a closed loop, creating a triangle shape. This configuration does not have a neutral point and is often used in low-voltage applications. Delta-configured transformers are more robust, capable of handling unbalanced loads, and are commonly used in industrial environments where high efficiency and reliability are required.
3. Star-Delta (Y-Δ) Configuration
In this configuration, the primary windings are connected in a star formation, while the secondary windings are connected in delta. This combination allows for stepping down high voltage and provides better load distribution. It is commonly used in substations for voltage reduction and can be used in both medium and high-voltage applications.
4. Delta-Star (Δ-Y) Configuration
This configuration has the primary windings in delta and the secondary windings in star. It is often used for step-up transformers in power generation systems, where higher voltages are needed for transmission.
Applications of 3-Phase Transformers
3-phase transformers are widely used across various industries and sectors. Some common applications include:
- Power Generation and Transmission: Used in power plants and substations to step up or step down voltage for efficient transmission over long distances.
- Industrial Applications: Essential for powering heavy machinery in factories, steel mills, oil refineries, and other industrial environments.
- Commercial and Residential Buildings: Used in large commercial buildings, hotels, hospitals, and multi-unit residential complexes to distribute electricity efficiently.
- Renewable Energy: Important for integrating power from renewable sources like wind and solar farms into the grid.
Key Benefits of 3-Phase Transformers
- Higher Efficiency: 3-phase transformers are more efficient than single-phase transformers, especially for high-power applications. They can handle larger loads with less energy loss, making them ideal for industrial and commercial use.
- Stability and Reliability: The 120-degree phase shift in a 3-phase system ensures a constant power supply with minimal fluctuations, which is vital for critical infrastructure.
- Compact Design: 3-phase transformers are more compact and lightweight compared to single-phase transformers of similar capacity, making them easier to install in tight spaces.
- Balanced Power: A 3-phase system delivers balanced power across all three phases, reducing the risk of equipment failure due to voltage imbalances.
How to Choose the Right 3-Phase Transformer
When selecting a 3-phase transformer for your application, consider the following factors:
- Voltage Rating: Ensure the transformer’s voltage ratings match your requirements. The transformer should be capable of stepping up or stepping down voltage within the required range.
- Power Capacity: Choose a transformer that can handle the load of your equipment. The transformer’s power rating (measured in kVA or MVA) should meet the demand of the connected devices.
- Configuration: Based on the specific needs of your electrical system, choose between star, delta, or hybrid configurations.
- Cooling Method: Transformers can be air-cooled (AN), forced air-cooled (AF), or oil-cooled. Choose based on the environmental conditions and the heat dissipation needs of your system.
- Safety Features: Look for transformers with built-in safety features such as thermal protection, fault alarms, and overload protection to ensure smooth and secure operation.
Conclusion
3-phase transformers are essential for efficient power distribution in industrial, commercial, and critical infrastructure applications. Understanding the different types, configurations, and applications of 3-phase transformers can help you make an informed decision when selecting the right transformer for your needs. Whether you need to step up or step down voltage, a 3-phase transformer ensures a stable, reliable, and efficient power supply.
By considering the key factors such as voltage ratings, power capacity, and safety features, you can ensure that your electrical system runs smoothly and effectively. If you’re looking for more information or need help choosing the right 3-phase transformer, feel free to contact us.
FAQ
Q1: What are the benefits of using a 3-phase transformer over a single-phase transformer?
A: 3-phase transformers offer better efficiency, reliability, and capacity for handling high-power applications. They provide a more stable and continuous power supply compared to single-phase systems.
Q2: What is the difference between core-type and shell-type 3-phase transformers?
A: Core-type transformers have three limbs with windings wound on each limb, while shell-type transformers have a core that surrounds the windings. Shell-type transformers offer better protection against external factors like mechanical stress.
Q3: How do I choose the right configuration for my 3-phase transformer?
A: The choice of configuration depends on your application’s voltage needs and whether you need a neutral point (star configuration) or not (delta configuration). Hybrid configurations like star-delta and delta-star are often used for voltage reduction and step-up applications.
Q4: Can a 3-phase transformer be used with a single-phase power supply?
A: While a 3-phase transformer cannot directly convert single-phase power to 3-phase, phase converters or phase-shifting devices can be used to create a 3-phase supply from a single-phase source.
Q5: What industries typically use 3-phase transformers?
A: 3-phase transformers are widely used in industries such as power generation, manufacturing, oil and gas, mining, and renewable energy, as well as in commercial and residential buildings requiring stable power supply.
Related Products

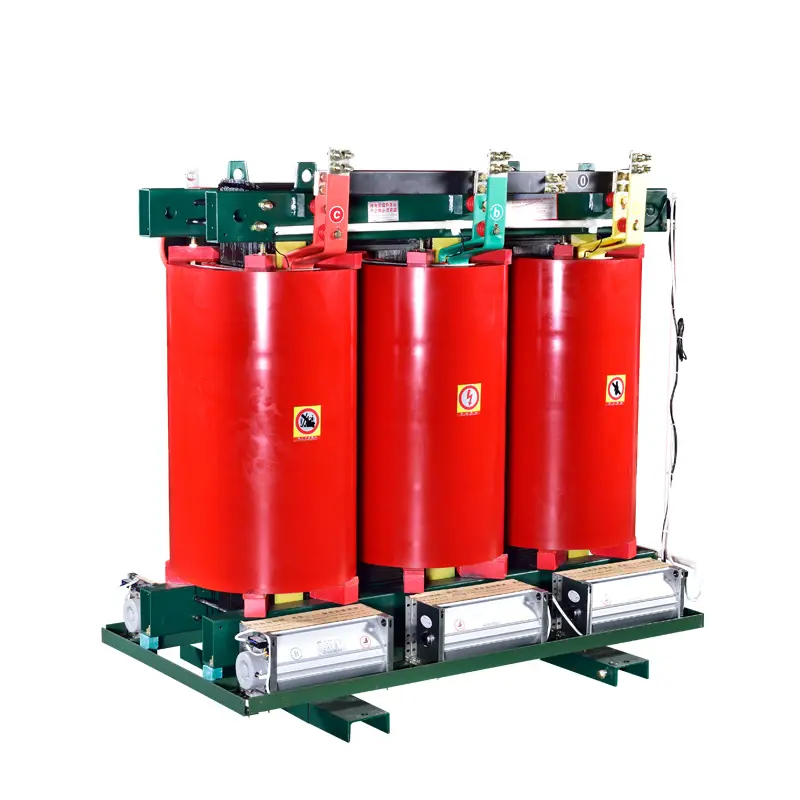

SCB11 11KV 3 Phase Dry-Type Cast-Resin Distribution Transformer
