Key features

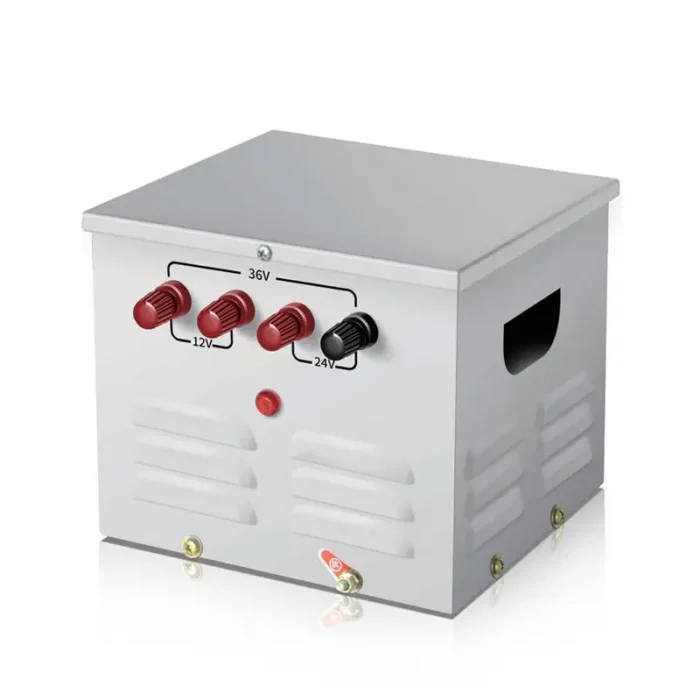

- Single-phase step-down isolation transformer for lighting and control circuits.

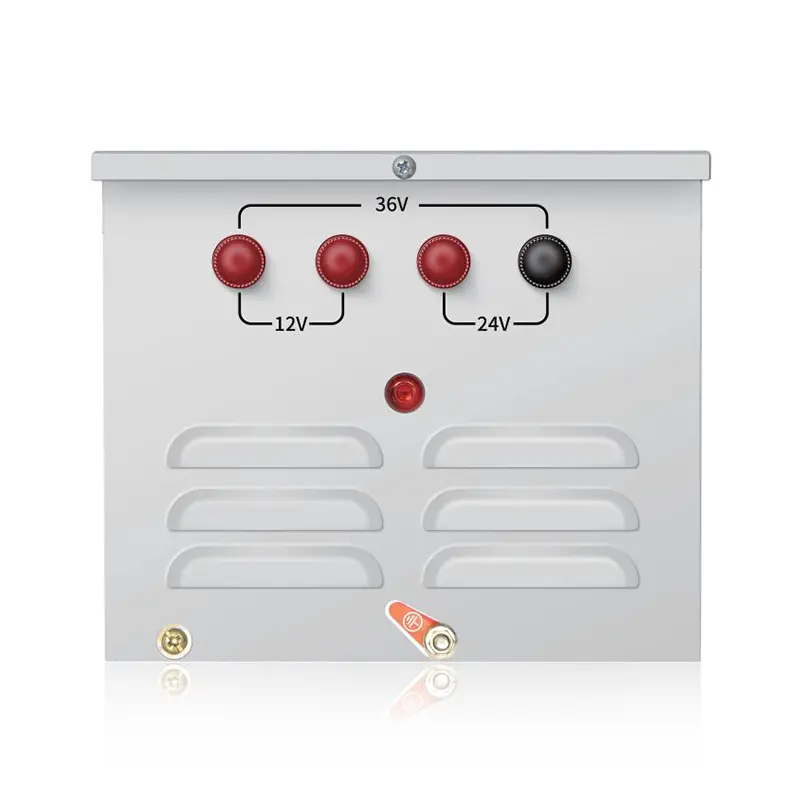

- Standard SELV secondary voltages: 12V, 24V, 36V, 110V (custom taps available).
- IEC Products
- Primary voltages: commonly 220/230/380 V; other primaries up to 500 V on request.
- Frequency: 50/60 Hz — suitable for international use.
- Compact, portable steel enclosure with handles or lifting rings — easy to move between sites.
- Built-in overload protection (fuses or automatic breakers) to guard against short-circuits and overloads.
- Effective thermal design with large ventilation openings — designed for stable long-term operation (temperature rise per model).
Product Description
| Model | primary voltage(V) | secondary voltage(V) | Mounting Dimensions voltage(V) |
Mounting holes(K*J) | Dimensions voltage(B*D*E) |
| JMB-25VA | 220/380 or according to user needs |
6.3/12/24/36/110/127/220/380 or according to user needs |
62.5*46 | 5*7 | 80*75*83 |
| JMB-50VA | 70*60 | 6*8 | 88*86*93 | ||
| JMB-100VA | 84*64 | 6*8 | 105*97*110 | ||
| JMB-150VA | 84*75 | 6*8 | 105*105*110 | ||
| JMB-200VA | 84*86 | 6*8 | 105*115*110 | ||
| JMB-250VA | 102*88 | 6*10 | 120*120*135 | ||
| JMB-300VA | 100*92 | 6*10 | 120*125*135 | ||
| JMB-400VA | 110*103 | 7*10 | 135*138*150 | ||
| JMB-500VA | 107*107 | 7*10 | 135*140*150 | ||
| JMB-700VA | 126*106 | 7*10 | 153*146*160 | ||
| JMB-1000VA | 126*126 | 7*10 | 153*166*160 | ||
| JMB-1500VA | 135*150 | 6*10 | 180*200*190 | ||
| JMB-2000VA | 155*160 | 8*10 | 200*250*220 | ||
| JMB-3000VA | 155*190 | 8*10 | 200*280*220 | ||
| JMB-5000VA | 200*190 | 8*11 | 230*330*260 |
Selection tips
-
For portable task lighting near water or metal, choose a SELV secondary (12–36 V) to reduce shock risk. IEC Products
-
Match the VA rating to the total lamp load + 20–30% margin for inrush/extra fixtures.
-
If you’ll use the unit outdoors or in dusty/wet sites, request a higher IP rating and corrosion-resistant finish. IEC
-
Need longer run lengths or special voltages? Ask about custom taps and secondary paralleled outputs
FAQ
Q1 — What affects the control transformer price?
A: Power rating (VA/kVA), primary/secondary voltages, IP/coil insulation class, required certifications and order quantity — all change the price. Small 25 VA units are inexpensive; 50 kVA custom units cost more. Send your specs and we’ll quote.
Q2 — Is the JMB safe for wet/damp workplaces?
A: Yes — when specified with SELV outputs and an appropriate IP rating. SELV isolation helps protect operators, and higher IP enclosures protect the unit from water ingress. IEC Products+1
Q3 — What about temperature rise and long-term use?
A: Typical dry-type transformers have temperature-rise limits defined by industry standards (model and insulation class determine exact figures). We test each unit and provide the temperature-rise data on the datasheet.
Need a quote or a custom spec? Contact our sales team with your required VA, primary/secondary voltages, IP rating and quantity — we’ll recommend the right JMB model and send a fast, detailed quote.
