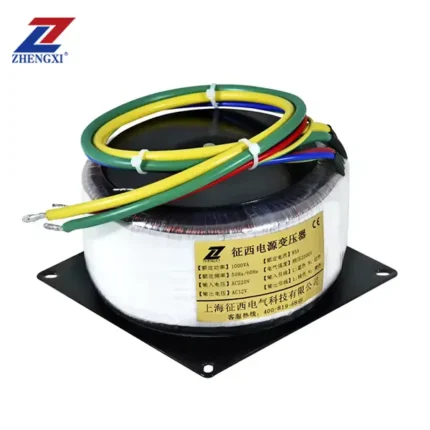

Single Phase Toroidal Isolation Transformer 220v To 220v With 2 Output Sockets

This 220V to 220V single-phase toroidal isolation transformer is made to supply delicate electronic and audio devices with clean, steady, and noiseless power. It efficiently isolates electrical noise and interference using high-efficiency toroidal core technology, guaranteeing connected devices operate at their best and are safe.

With two outputs and a smart HD LCD display, users can effortlessly keep an eye on operating condition, load, and voltage in real time. This isolation transformer provides clean power, low electromagnetic interference, and long-term reliability whether it is utilized in industrial control systems, medical equipment, audio systems, or labs.

Category: , ,
Description

Key Features

1. Pure Isolation Performance

Provides electrical isolation between the input and output, eliminating electrical noise and reducing harmonic distortion.
Ensuring a pure 220V output voltage, the voltage is completely isolated from the input, making it ideal for delicate electronic equipment.

2. High-Efficiency Toroidal Design

Compared to traditional laminated transformers, the toroidal core structure minimizes magnetic leakage, improves energy conversion efficiency, and reduces size and weight.

Quiet operation, low vibration, and low heat generation.

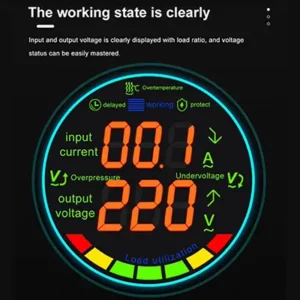

3. High-Definition Smart Display

Equipped with a bright LCD screen, it clearly displays voltage, load, and operating status in real time, making it easy to monitor system performance.

4. Six Major Protection Functions

Overvoltage Protection、Overload Protection、Overtemperature Protection、Time Delay Protection、Short-Circuit Protection、Power-On Surge Suppression
These features ensure safe, reliable, and stable operation under all conditions.

5. Safe and Durable Construction

Made with high-quality copper windings and high-insulation materials, it offers a long service life. Suitable for continuous operation in residential and commercial environments.

Technical Parameters

Capacity AFT-300W AFT-500W AFT-1000W AFT-2000W
Max-Power 270W 450W 900W 1800W
Weight 13.23LB 17.6LB 21LB 33LB
Input Voltage single phase AC110-120v、AC220V or customize
Size 11.8 * 7.1 * 5.1 inch 12*8.3*8.3
Output Voltage single phase AC110-120v 、AC220V or customize
Insulation resistance ≥5MΩ
Frequency: 50/60HZ
Rated current 2.28A
Working temperature upper limit 40 ° C, lower limit -20 ° C
Relative humidity no more than 90%
Altitude no more than 2000m

Applications

  • Audio Equipment and Studios: Enhance sound quality and reduce noise interference.
  • Laboratories and Test Benches: Provide clean, isolated power to precision instruments.
  • Medical Equipment: Ensure safe isolation of sensitive electronic equipment.
  • Industrial Automation: Protect PLCs, sensors, and control panels from voltage fluctuations. For home or office use: Provides clean power for computers, amplifiers, and AV systems.

Why Choose Zhengxi Isolation Transformers?

With decades of experience in transformer manufacturing, Zhengxi is a trusted manufacturer of toroidal isolation transformers, serving industrial, commercial, and international customers. Our transformers undergo rigorous quality control to ensure high reliability, consistent performance, and compliance with IEC and CE safety standards.

We offer OEM and ODM customization services, including input/output voltage options, socket types, and power ratings to meet your specific project needs.

FAQs

Q1: What is the purpose of a 220V to 220V isolation transformer?

A: It isolates electrical loads from the main power source, eliminating ground loops, reducing noise, and improving safety without changing voltage levels.

Q2: What are the advantages of toroidal isolation transformers over traditional EI cores?

A: Toroidal transformers offer higher efficiency, lower noise, smaller size, and reduced electromagnetic interference.

Q3: Can this transformer be customized for different plug standards or voltages?

A: Yes. Zhengxi can provide customized voltage configurations and socket types based on the standards in your area or specific project requirements.

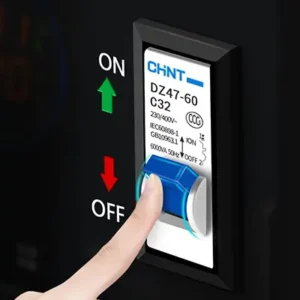

Brand switch One click Start Intelligent liquid crystal display Pure copper coil Full power



Shipping & Delivery

Related products

QSG Chinese 3 phase Dry Type Auto transformer 440v to 220v

QSG Chinese 3 phase Dry Type Auto transformer 440v to 220v

,
If your facility requires stable and efficient voltage conversion—from 440V to 220V, 380V to 220V, or other customized three-phase voltages—the ZHENGXI QSG Series Three-Phase Dry Type Autotransformer is designed to deliver reliable performance, high efficiency, and long service life. As a trusted Chinese transformer manufacturer, ZHENGXI provides advanced engineering, strict quality control, and competitive 3 phase transformer price options to support global industrial applications.
Quick view

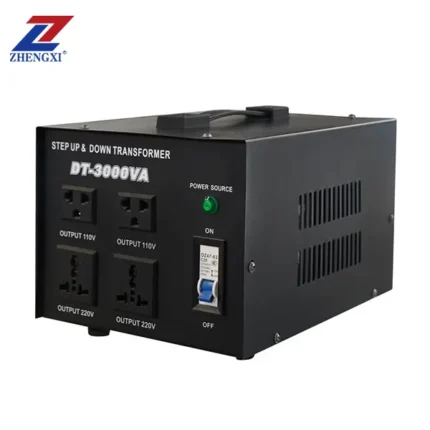

500VA–5000VA Single Phase Step Up and Down Voltage Converter 110v to 220v
