Main Features
- Dual Function (Step Up & Step Down): Converts voltage between 110–120V and 220–240V for universal use

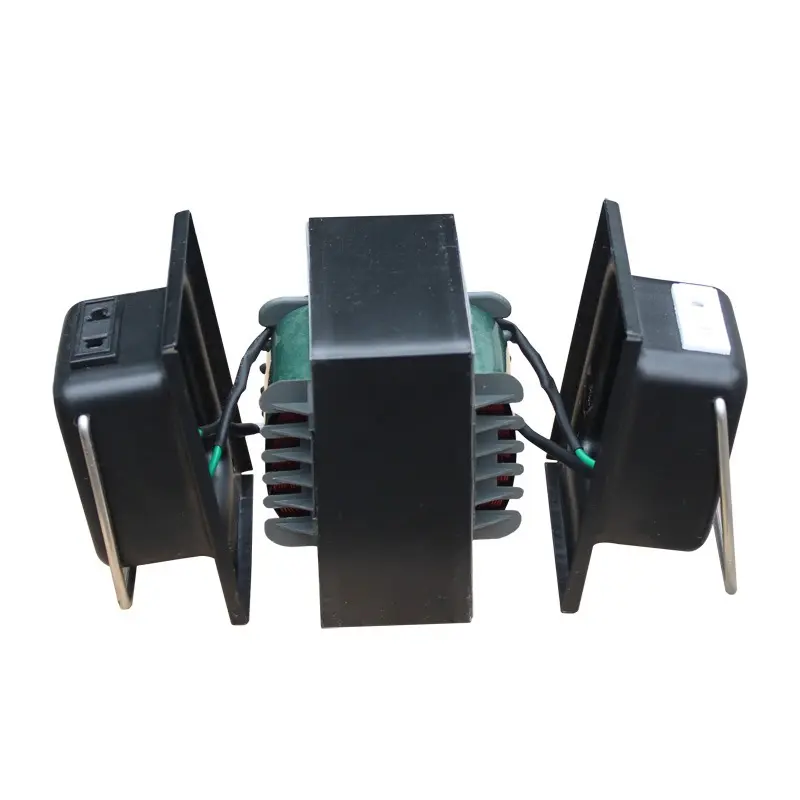

- Heavy-Duty Design: Built with copper coils and durable materials for long service life and stable output.
- Safety Protection: Equipped with fuse or over-current protection to ensure safety during continuous operation.
- Multiple Plug Options: Supports US, European, UK, Schuko, VDE, Australian, and Asian plug standards.
- Versatile Output: Up to three AC output sockets available for convenient multi-device use.
- Stable Output: Pure AC output ensures reliable performance for sensitive electronics.
- Compact & Portable: Easy to carry for home, travel, or workshop applications.
- Wide Input Range: 110V/117V/120V/220V/230V/240V selectable; output matches accordingly.
Technical parameters
| Type | Product size(cm) | Package size(cm) | QTY |
| TC-100VA | 10*6.9*8.2 | 27*27*19 | 12 |
| TC-200VA | 11*6.9*8.2 | 27*27*19 | 12 |
| TC-300VA | 12.3*6.9*8.2 | 27*27*19 | 12 |
| TC-500VA | 12.7*8.5*10.1 | 30.5*22.5*23 | 8 |
| TC-800VA | 13.7*8.5*10.1 | 30.5*22.5*23 | 8 |
| TC-1000VA | 14.7*8.5*10.1 | 30.5*22.5*23 | 8 |
| TC-1500VA | 15*13*15.5 | 31.5*17.5*18 | 4 |
| TC-2000VA | 16.5*13*15.5 | 31.5*17.5*18 | 4 |
| TC-3000VA | 19*13*15.5 | 29.8*24*20.5 | 2 |
| TC-5000VA | 22*13*15.5 | 29.8*24*20.5 | 2 |
Applications
This Voltage Converter is ideal for both home and office use. It supports a wide range of electrical appliances such as:
- Home appliances: rice cookers, coffee machines, juicers, water dispensers, and fans
- Electronics: computers, printers, fax machines, and audio amplifiers
- Power tools & salon devices: drills, hair dryers, and other 110V or 220V-rated tools
- Perfect for international travelers, small workshops, or home users who need to operate imported appliances safely.
Technical Specifications
| Parameter | Description |
|---|---|
| Type | Single-phase Step Up & Down Voltage Converter |
| Input Voltage | AC 110V / 200V / 220V / 230V / 240V |
| Output Voltage | AC 110V & 220V |
| Frequency | 50Hz / 60Hz |
| Rated Capacity | 100VA, 200VA, 300VA, 500VA, 800VA, 1000VA, 1500VA, 2000VA, 3000VA, 5000VA (customizable) |
| Protection | Fuse or Over-current Protector |
| Connection Type | Plug & Socket (up to 3000VA); Terminal Input (above 3000VA) |
| Cooling | Natural air cooling |
| Service Life | >10 years (under normal use) |
Usage Guidelines
-
Pre-Use Check: Before connecting your appliance, power on the transformer for 3–5 minutes to ensure normal operation.
-
Load Selection:
-
Do not operate the converter at full or over load for long periods.
-
Choose a transformer rated 1.2–1.5× higher than your appliance power.
-
For 24-hour continuous use, select a transformer rated 2× your appliance’s wattage.
-
-
Power Reference:
-
200–400W → 500W transformer
-
400–800W → 1000W transformer
-
800–1300W → 1500W transformer
-
1300–1800W → 2000W transformer
-
1800–2400W → 3000W transformer
-
-
Cooling & Safety: Ensure good ventilation; avoid humidity, heat, and flammable materials.
-
Power Off: Always disconnect the power supply after use to extend the transformer’s lifespan.
Why Choose the TC Series?
✔ Reliable universal voltage solution for home and travel
✔ Safe and stable output with short-circuit and overload protection
✔ Easy to operate with plug-and-play design
✔ Compact, portable, and durable — ideal for long-term daily use
