What is an IGBT static voltage stabilizer?
In contrast to conventional servo motor or relay stabilization devices, the ZBW series utilizes IGBT (Insulated Gate Bipolar Transistor) static regulation. This technology is widely recognized in the power field and is mentioned in IEEE and Industrial Automation Standards.
How It Works
- It continuously keeps track of the voltage through digital sampling processes.
- It is a high-speed control system that triggers IGBT modules.
- Voltage compensation happens in milliseconds, without any mechanical motion

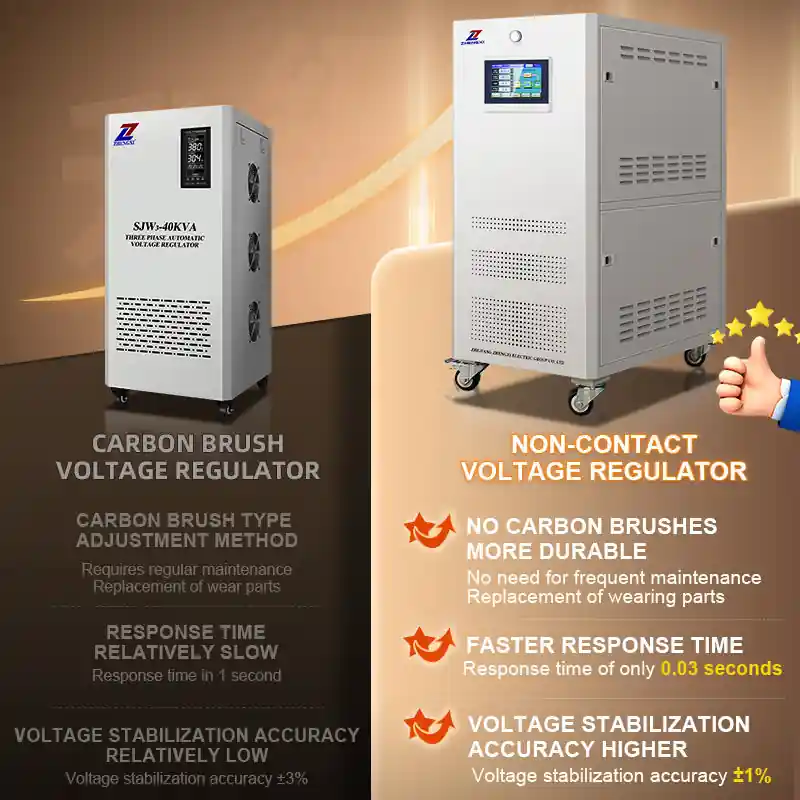

Main Benefits from Static Regulation
- Ultra-fast response speed
- No mechanical wear, hence longer life span
- No additional waveform distortion
- High stability with frequent voltage fluctuations
It makes the ZBW stabilizer especially useful in CNC machines, semiconductor processing, medical image processing equipment, and automated assembly lines.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ZBW-S-10kVA–4000kVA |
| Phase | Three Phase |
| Input Voltage | AC 304–456V (customizable) |
| Output Voltage | AC 380V (customizable) |
| Frequency | 50Hz / 60Hz |
| Precision | ±1% |
| Efficiency | >95% |
| Control Type | IGBT Static Control |

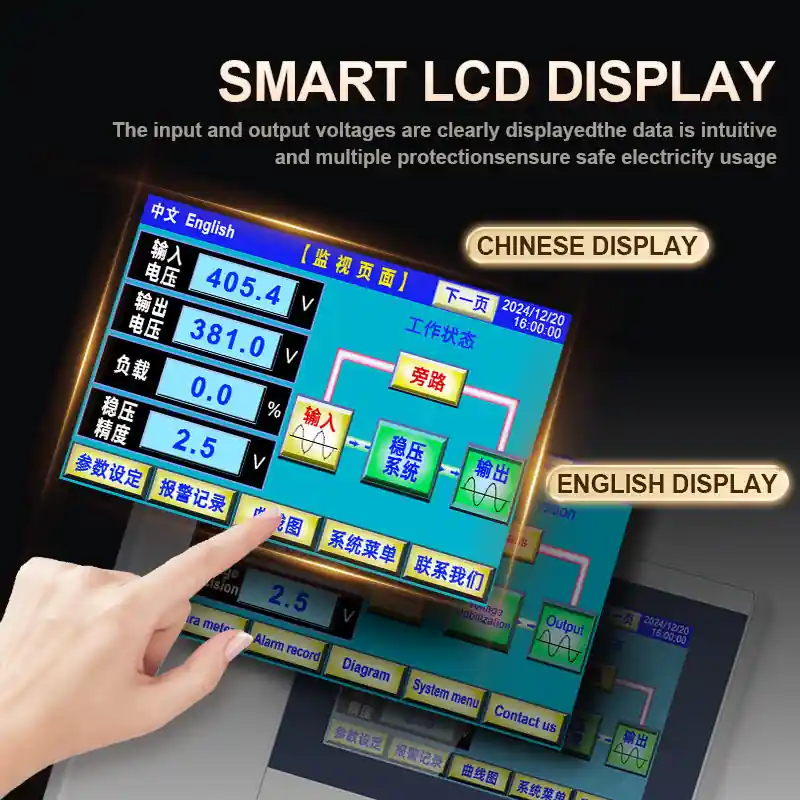

| Digital Display | Input/Output Voltage, Load Ratio, Fault Indicator |
| Waveform Distortion | None (No additional distortion) |
| Insulation Resistance | ≥2MΩ |
| Ambient Temperature | -10°C to +40°C |
| Relative Humidity | <95% |
| Protection | Overvoltage, Undervoltage, Overload, Short Circuit, Over Temperature |
| Delay Protection | Customizable (disabled by default) |
| Dimensions & Weight | Customized by voltage & capacity |
Note: Size and weight vary depending on configuration.
FAQ
Q1: What capabilities would be required in an ideal ZBW stabilizer?
Yes. It is accurate to ±1% with no distortion of the waveform. It is best suited for CNC machines, medical instruments, and automation.
Q2: Can the input and output voltage be customized?
Indeed. The input as well as output voltage can also be tailored to suit local network exigencies or special machine requirements. Thus, flexibility is possible here as per specific needs.
Q3: Does the stabilizer need constant maintenance?
No. Because of the static IGBT structure without any moving components, there is limited need for periodic maintenance work compared to servo stabilizers.
