What Is a Non-Contact Static Voltage Stabilizer?
A Non-Contact Static Voltage Stabilizer
A voltage stabilizer that does not have physical contact between the moving parts and the static parts uses:
- Instead of using motors and moving contact points, the voltage stabilizer relies
- High-speed electronic switching
- Microprocessors & Programmable Logic Devices (PLD)
Transformer tap positions controlled at zero crossings This approach to designing has been widely adopted in recent years in power electronics and corresponds to IEEE guidelines for voltage research in terms of quick response and minimized mechanical failure points for voltage regulation in industrial settings.

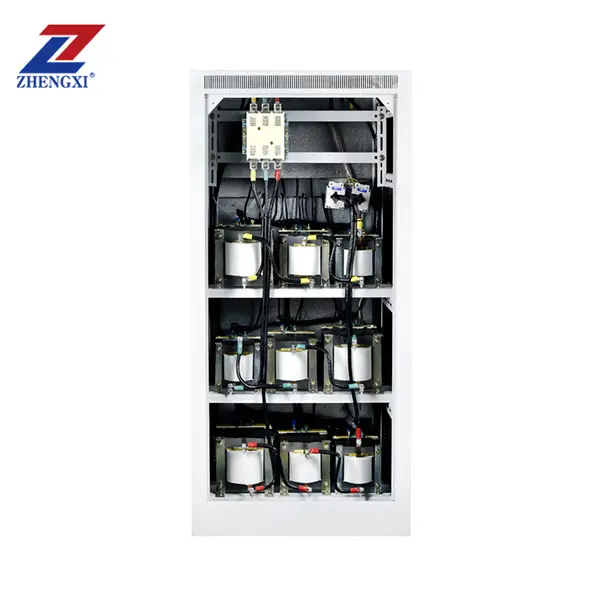

Core Strengths of the 1000kVA ZBW Static Stabilizer
1. Ultra-Fast Voltage Response ≤10ms
A voltage deviation is usually detected by the stabilizer, which completes compensation in less than 10 milliseconds and shields sensitive equipment from harmful voltage sags or surges.
This response speed is particularly valuable for:
CNC machining centers
Precision testing equipment
Medical and laboratory systems
2. Exceptional Regulation Accuracy
Standard accuracy: ±2.5%
Optional range: ±1% to ± 5%, configurabe with respect to load characteristic
That flexibility enables the user to balance the precision with system tolerance and cost without over-engineering.
3. High Efficiency for Large Loads
Efficiency: ≥98% Minimal internal loss, even at full load Lower operating expenses for constant 24/7 applications Its large 1000kVA capacity means that even small improvements in efficiency translate into significant energy savings in the long run.
Technical Specifications
| Model | ZBW-S-10KVA-2000KVA | |
| Phase | Three phase | |
| Input voltage | AC 304-456V or customized | |
| Output voltage | AC 380 V or customized | |
| Frequency | 50Hz/60Hz | |
| Precision | ±3% | |
| Efficiency | >95% | |
| Control type | IGBT | |
| Digital display | Show input and output voltage,Load Ratio and Fault Indicator | |
| Protection | Overvoltage,Overload,Short circuit,Over temperature | |
| Ambient temperature | -10℃~+ 40℃ | |
| Relative Humidity | <95% | |
| Waveform Distortion | No additional wave form distortion | |
| Insulating Resistance | Normally more than 2MΩ | |
| Protection | Overvoltage | Output Voltage ≥ 425V ± 4V |
| Low voltage | Output Voltage ≤ 360V ± 4V | |
| Over temperature | 95℃±10℃ | |
| Delay protection | Customizable | |
| Undervoltage | Disabled by default,customizable if needed | |
| The size and weight vary depending on the voltage range,and are subject to the customized actual product. | ||
Intelligent LCD Monitoring and User Interface
The integrated display allows the system status to be viewed in real time.
These parameters include:
Three phase voltage: (A, B, C) – TRMS values
Three phase current (A, B, C – TRMS values)
Regulator or bypass operating state permits the receiver to
Functions of protection devices include fault indication of over-voltage, under-v
All parameters are shown as digital values, doing away with the inaccuracies inherent in a pointer type metering system。
Automatic Three-Phase Voltage Balance
Contrary to conventional systems that control the phases separately, the designed voltage stabilizer also does three-phase voltage balancing automatically, resulting in the reduction of:
Phase imbalance
Motor Overheating
Transformer losses
Uneven equipment wear
This feature that finds its significance in bigger motors, automation lines, and grid-connected industrial systems.
Application Scenarios
The 1000kVA Non-Contact Static Voltage Stabilizer is widely used in:
- CNC Machining Centers –Maintain consistent voltage to precisely cut materials as well as protect machining tools
- Medical Equipment – Offers a clean source of power to medical imaging devices
- Printing Machinery – Prevents DOWNTIME due to VOLTAGE FLUCTU
- Environmental Testing Equipment –Ensures test accuracy despite changing grid conditions
ZBW Static Series vs Traditional SBW Servo Stabilizers
| Feature | SBW Servo Type | ZBW Non-Contact Static Type |
|---|---|---|
| Regulation Principle | Carbon brush + motor | Microprocessor + PLD |
| Mechanical Parts | Yes | None |
| Response Time | ~200ms | <10ms |
| Voltage Adjustment Speed | Slow (≈20V/s) | Instant jump correction |
| Three-Phase Balance | Not supported | Automatic |
| Harmonic Resistance | No | Yes |
| Maintenance | Regular | Maintenance-free |
| Bypass Mode | Manual | Manual / Automatic (uninterrupted) |
| Parameter Display | Pointer meters | LCD TRMS digital display |
For modern industrial systems, static regulation clearly represents the next generation of voltage stabilization technology.
FAQ
Q1: Can I use this stabilizer in harmonic-rich areas?
Yes. Its voltage and current acquisition system has anti-harmonic functions, which allow precise regulation and measurement despite high levels of harmonics.
Q2: Does the transition to bypass interrupt power?
No. Both the bypass modes are unbroken, meaning there is always constant power to the critical load.
Q3: Does the stabilizer need periodic maintenance?
There are no maintenance requirements because it has no carbon brushes, no contacts, and no mechanical transmission.
