Key Features
1. Precision Voltage Control
-
Three-phase independent regulation with ±0.8% voltage accuracy (standard models ±1.5%) ensures stable power under any grid condition.
-
Fast response time ≤15 ms, maintaining steady operation during sudden voltage fluctuations.
-
Supports 100% load imbalance, far exceeding the national GB standard (30%), making it ideal for unbalanced industrial loads.
2. Contactless & Maintenance-Free Operation
-
Equipped with an arcless thyristor switching module for zero-arcing operation, achieving over 1 million switching cycles.
-
Eliminates carbon brushes and mechanical wear, reducing maintenance frequency and downtime.
3. Superior Thermal Management
-
The oil-immersed cooling system provides 12× higher heat dissipation than air-cooled stabilizers (thermal conductivity 0.14 W/m·K).
-
Handles 200% instantaneous overload (0.5s) and 125% continuous overload (≥2h) with stable performance.
-
Ensures excellent phase temperature balance (ΔT ≤8K), significantly better than the GB/T 6451 standard limit of 15K.
4. Rugged, Sealed Construction
-
Fully sealed IP68 oil tank, dustproof and waterproof, designed for reliable performance in harsh outdoor environments.
-
Operates safely under 100% humidity and 20 mg/m³ dust concentration.
-
Proven >30-year service life, verified by more than 26 years of continuous operation in thermal power generation applications.
Technical Advantages
| Parameter | Specification |
|---|---|
| Voltage Accuracy | ±0.8% (±1.5% standard) |
| Response Time | ≤15 ms |
| Load Imbalance Capability | 100% |
| Overload Capacity | 200% instantaneous / 125% continuous |
| Short-Circuit Withstand | 300% rated current (IEC 60076-5 standard: 250%) |
| Short-Circuit Impedance | ≤6% (industry average: 8%) |
| Protection Level | IP68 |
| Service Life | >30 years |
| MTBF (Mean Time Between Failures) | 150,000 hours |
Advanced Manufacturing Process
- Core: Made from 0.20 mm JIS C2552 Z11-grade silicon steel with step-lap stacking for low no-load loss (≤0.9 W/kg) and reduced magnetizing current (<0.8%).
- Windings: Uses segmented foil winding technology with low partial discharge (<5 pC) after VPI vacuum impregnation, ensuring high dielectric reliability.
- Oil Tank: Constructed with 6 mm laser-welded steel plates, helium leak-tested (<10⁻⁶ Pa·m³/s), and equipped with a bellows expander for automatic pressure balance.
- Insulation System: VPI process improves dielectric strength by 250%, maintaining a safe 45 K temperature rise (well below the GB limit of 65 K).
Comprehensive Testing & Quality Assurance
Every industrial voltage stabilizer undergoes a rigorous three-stage testing process to guarantee long-term stability and safety.
1. Electrical Performance Testing
- Voltage regulation accuracy: ±0.5%
- Efficiency ≥98%, THDv <1.5%
- Dynamic response ≤20 ms
- Protection calibration: Overvoltage 275V±1V, Undervoltage 160V±1V
2. Safety Verification
- Insulation resistance ≥100MΩ @1000VDC
- Power-frequency withstand voltage: 35kV/60s (no flashover)
- Ground continuity <0.1Ω
3. Accelerated Aging Test
- 48h at 110% load + 24h at 125% overload cycle testing
- Conducted under 85°C / 85% RH, with real-time monitoring of oil temperature and leakage
- Filters early-failure components, ensuring >150,000-hour design life
Applications
- Thermal & Hydropower Plants
- Petrochemical, Steel & Mining Industries
- Precision Manufacturing & Automation Lines
- Data Centers & Power Distribution Networks
- HVAC Systems in High-Rise Buildings
- Renewable Energy & Grid Integration Systems
Why Choose ZHENGXI Oil Immersed Stabilizer?
- High voltage precision and ultra-fast response
- Zero-maintenance thyristor switching technology
- Superior thermal and overload handling capacity
- Long lifespan and high reliability (>30 years)
- Sealed IP68 protection for outdoor environments
- Compliant with IEC 60076 & GB/T 6451 standards
FAQs
Q1: What’s the difference between oil-immersed and dry-type stabilizers?
A1: Oil-immersed stabilizers provide better cooling efficiency and durability under heavy load or harsh environments, making them ideal for outdoor and industrial use. Dry-type stabilizers are more compact and preferred for indoor, light-duty applications.
Q2: Can this 3 phase voltage stabilizer handle phase imbalance?
A2: Yes. It supports 100% load imbalance, maintaining voltage stability even under severe unbalanced loading conditions common in industrial systems.
Q3: What is its expected service life?
A3: With sealed oil cooling, high-dielectric insulation, and robust construction, this stabilizer offers over 30 years of reliable service with minimal maintenance.
Conclusion

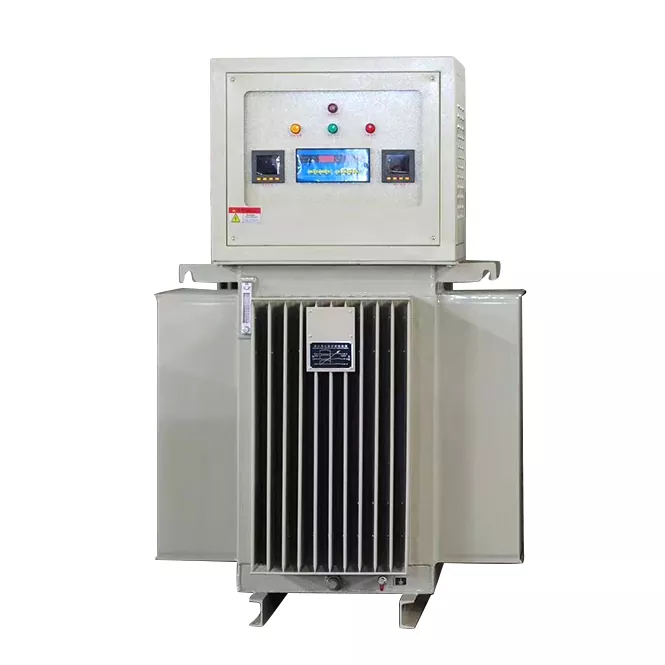

The 3 Phase Oil Immersed Industrial Voltage Stabilizer is built for industries where voltage reliability is non-negotiable. Its combination of precision regulation, rugged IP68 design, and maintenance-free thyristor control ensures unparalleled performance even under the toughest grid conditions.
Whether you operate a power plant, a manufacturing line, or a data center, this industrial voltage stabilizer delivers the stable, efficient, and long-lasting power solution your business can depend on.
Contact ZHENGXI today to get a customized quote and discover how our oil-immersed stabilizers can enhance your operational stability and protect your valuable equipment.
