Step-Up Transformer: Working Principle, Design, and Industrial Applications

In modern power systems, step-up transformers play a vital role in transmitting electrical energy efficiently over long distances. Whether used in power generation stations or renewable energy systems, they ensure voltage levels are increased to minimize energy loss. As a trusted step-up transformer manufacturer, ZHENGXI provides reliable single-phase and three-phase solutions designed for heavy-duty industrial environments.

What Is a Step-Up Transformer?

A step-up transformer is an electrical device that increases the voltage from its primary winding to its secondary winding while maintaining the same power level (ignoring small losses). It converts low-voltage, high-current input into high-voltage, low-current output — essential for efficient power transmission.

For example, a 220V input can be stepped up to 380V or higher, depending on the application.
In industrial systems, three-phase step-up transformers are commonly used for large power loads, while single-phase step-up transformers are preferred for smaller machines and laboratory equipment.

Working Principle

Step-up transformers operate based on Faraday’s law of electromagnetic induction.
When alternating current (AC) passes through the primary winding, it creates a changing magnetic field in the iron core. This magnetic field induces an electromotive force (EMF) in the secondary winding. Since the secondary coil has more turns than the primary coil, a higher voltage is generated on the output side.

Formula: V1 / V2 =N1 / N2

V1= Primary voltage
𝑉2= Secondary voltage
𝑁1= Number of turns in the primary winding
𝑁2 = Number of turns in the secondary winding

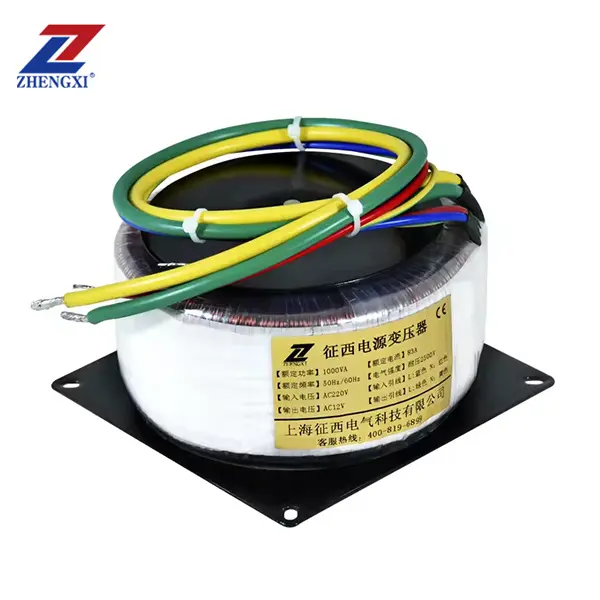

Construction Details

1. Core

The core is made of laminated silicon steel or ferrite materials to minimize eddy current losses. High magnetic permeability allows magnetic flux to pass efficiently, improving transformer performance and reducing heating.

2. Windings

The primary and secondary windings are usually made of copper or aluminum conductors.

• Copper windings: Offer higher conductivity and mechanical strength.
• Aluminum windings: Provide a lighter and cost-effective option.

In a step-up transformer, the secondary winding has more turns than the primary to achieve voltage increase.

3. Cooling System

Depending on the rating, step-up transformers may use air cooling (dry-type) or oil immersion systems to maintain temperature stability during continuous operation.

Types of Step-Up Transformers

1. Single-Phase Step-Up Transformer
   • Ideal for residential, small-scale industrial, and testing applications.
   • Compact design and easy installation.
   • Used in voltage converters, stabilizers, and backup power systems.
2. Three-Phase Step-Up Transformer
   • Designed for power plants, substations, and manufacturing facilities.
   • Ensures balanced load distribution and higher efficiency.
   • Common configurations include delta-star (Δ-Y) or star-delta (Y-Δ).

Key Industrial Applications

• Power Generation Stations: Used to raise generator output voltage for long-distance transmission.
• Renewable Energy Systems: In solar and wind farms, step-up transformers convert low DC or AC voltage to higher grid-compatible levels.
• Industrial Equipment: Powering heavy-duty machines that require stable high-voltage supply.
• HVAC and Lighting Systems: Supporting stable voltage in commercial facilities and construction sites.

Advantages of Step-Up Transformers

✅ Efficient long-distance transmission
✅ Reduced power loss
✅ High insulation and overload protection
✅ Compact design with minimal maintenance
✅ Customizable voltage ratios

Why Choose Our Step-Up Transformers

With over 20+ years of experience, ZHENGXI specializes in custom-designed single-phase and three-phase step-up transformers. Our products meet IEC, ISO, and CE standards, ensuring high performance, reliability, and safety in critical operations.

• Tailored voltage range: 110V–1000V
• Power capacity: 500VA–1000kVA
• Available in dry-type and oil-immersed models
• OEM & ODM service available

FAQs

Q1: What’s the efficiency of a step-up transformer?
A: Typically above 95%, depending on the design, load, and cooling method.

Q2: Can I use a step-up transformer for renewable energy systems?
A: Yes, ZHENGXI offers models compatible with solar and wind power systems for grid integration.

Q3: What’s the difference between single-phase and three-phase step-up transformers?
A: Single-phase models are used for smaller loads, while three-phase units handle industrial-level power distribution.
