In modern industrial and commercial facilities, voltage conversion is often required to power heavy-duty machinery. A 220V to 380V step-up transformer is specifically designed to raise three-phase voltage from 220V to 380V. This ensures compatibility with high-power equipment, improves distribution efficiency, and supports smooth operation.
In this guide, we’ll walk through the technical aspects, advantages, applications, and best practices for choosing and maintaining a 220V to 380V step-up transformer.
Technical Overview of 220V to 380V Step-Up Transformers
A step-up transformer operates on the principle of electromagnetic induction. Here are its key components and functions:
- Core and Windings: Built with laminated silicon steel cores and copper/aluminum windings. The primary winding receives 220V input, while the secondary delivers 380V output.
- Turns Ratio: The voltage increase depends on the turns ratio (N2/N1). For 220V to 380V, the secondary winding has approximately 1.73 times more turns.
- Power Ratings: Available in different kVA or MVA ratings to suit small workshops or large-scale factories.
- Phases: Typically designed for three-phase input and output in industrial settings. Single-phase versions exist but are less common.
- Efficiency: High-quality models achieve >95% efficiency, minimizing energy losses inside the facility.
- Cooling: Options include dry-type (air-cooled) or oil-immersed for better heat dissipation.
- Protection Features: Equipped with overload relays, surge arresters, and temperature monitoring systems to ensure safe and reliable operation.
Advantages of Using a 220V to 380V Step-Up Transformer
- Equipment Compatibility: Allows the use of 380V industrial equipment in regions where the grid only provides 220V.
- Improved Efficiency: Enhances power distribution efficiency and reduces downtime caused by unstable voltage.
- Cost-Effective: Eliminates the need for major infrastructure upgrades by adapting existing 220V supply systems.
- Reliable Performance: Delivers a stable voltage output, protecting sensitive equipment from fluctuations.
- Scalability: Supports industrial growth by meeting future higher-voltage demands.
Industrial Applications
220V to 380V step-up transformers are widely used across industries that depend on stable three-phase power:
- Manufacturing: CNC machines, compressors, and conveyor systems.
- Renewable Energy: Connecting solar or wind farm outputs to 380V industrial grids.
- Mining: Supplying power to drilling rigs, crushers, and ventilation systems.
- Data Centers: Ensuring reliable UPS and power backup systems.
- Construction: Powering cranes, elevators, and welding equipment.
Installation and Maintenance Best Practices
To extend the lifespan and maximize performance of your step-up transformer:
- Accurate Sizing – Match the transformer rating with your actual load to avoid overload or underload conditions.
- Professional Installation – Engage certified electricians to ensure compliance with IEC or ANSI standards.
- Regular Inspections – Monitor insulation, check connections, and look for oil leaks (if oil-immersed).
- Cooling Management – Maintain proper airflow or coolant levels.
- Load Monitoring – Use smart meters or monitoring systems to track stability and power quality.
FAQ
- How does a 220V to 380V step-up transformer work?
It raises the voltage using electromagnetic induction. The 220V input at the primary winding induces a higher 380V output at the secondary winding. - Can this transformer withstand overloads?
Most models include overload protection, but prolonged overloading can damage the unit. Always choose the right capacity. - Is a single-phase or three-phase transformer better?
For industrial loads, a three-phase transformer is the best choice. Single-phase step-up transformers exist but are mainly used for smaller equipment. - What safety certifications should I look for?
Look for compliance with IEC, ANSI, or ISO standards, along with CE or UL markings. - What is the typical service life of these transformers?
With proper installation and maintenance, a step-up transformer can last 25–30 years. - Can a 220V to 380V step-up transformer convert single-phase into three-phase?
Yes. Conventional transformers only change the voltage level, not the number of phases. ZHENGXI’s DZW single-phase to three-phase transformer uses the principle of a phase converter to convert 220V single-phase electricity to 380V three-phase electricity. - What about the step-up transformer price?
The cost depends on the rated capacity (kVA), type (oil-immersed or dry-type), and additional features. For an accurate step-up transformer price, consult a professional manufacturer like ZHENGXI.
Related Blogs
How to Identify an Isolation Transformer — Practical Tests, Nameplate Clues & Buyer Checklist
An isolation transformer provides galvanic separation between its primary and secondary windings. That electrical...
What’s the difference between an autotransformer and an isolation transformer?
An autotransformer changes voltage using a single tapped winding — it’s compact, efficient and cost-effective whe...
Isolation Transformer Price and Purchasing Guide
An isolation transformer provides galvanic separation between the power source and the load to improve safety and...
Related Products
Single Phase Toroidal Isolation Transformer 220v To 220v With 2 Output Sockets
This 220V to 220V single-phase toroidal isolation transformer is made to supply delicate electronic and audio devices with clean, steady, and noiseless power. It efficiently isolates electrical noise and interference using high-efficiency toroidal core technology, guaranteeing connected devices operate at their best and are safe.
With two outputs and a smart HD LCD display, users can effortlessly keep an eye on operating condition, load, and voltage in real time. This isolation transformer provides clean power, low electromagnetic interference, and long-term reliability whether it is utilized in industrial control systems, medical equipment, audio systems, or labs.

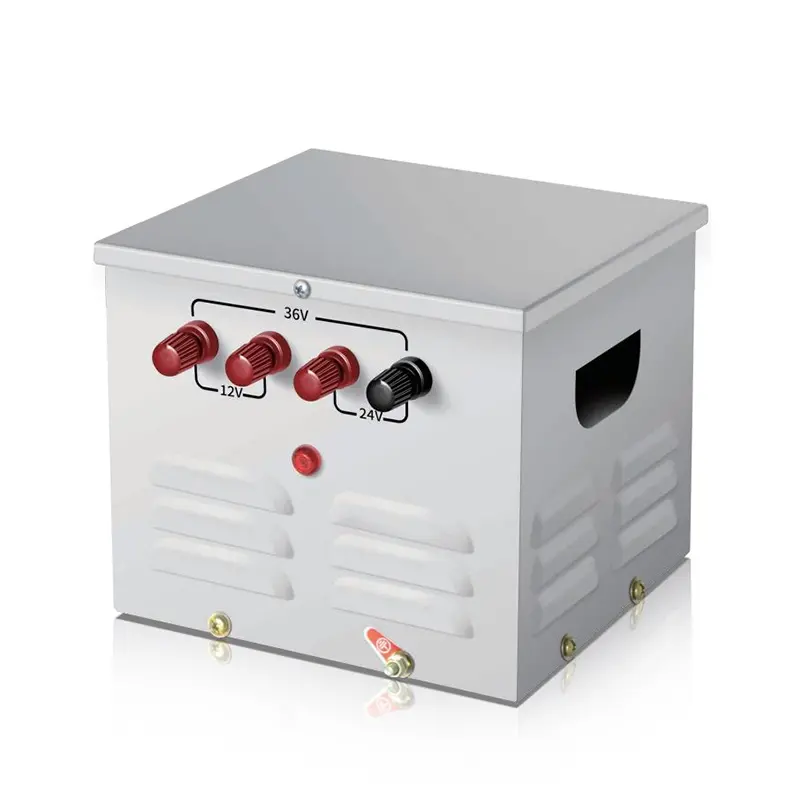

JMB Single-Phase Portable Lighting Step Down Control Transformer 25Va~50Kva
The JMB series is our rugged, portable single-phase control transformer built for lighting and small industrial equipment. It steps down common mains voltages to isolated, Safety Extra-Low Voltage (SELV) outputs — ideal for damp job sites, confined spaces and metal enclosures where safety matters. Available from 25 VA up to 50 kVA, with multiple taps and optional protective features.

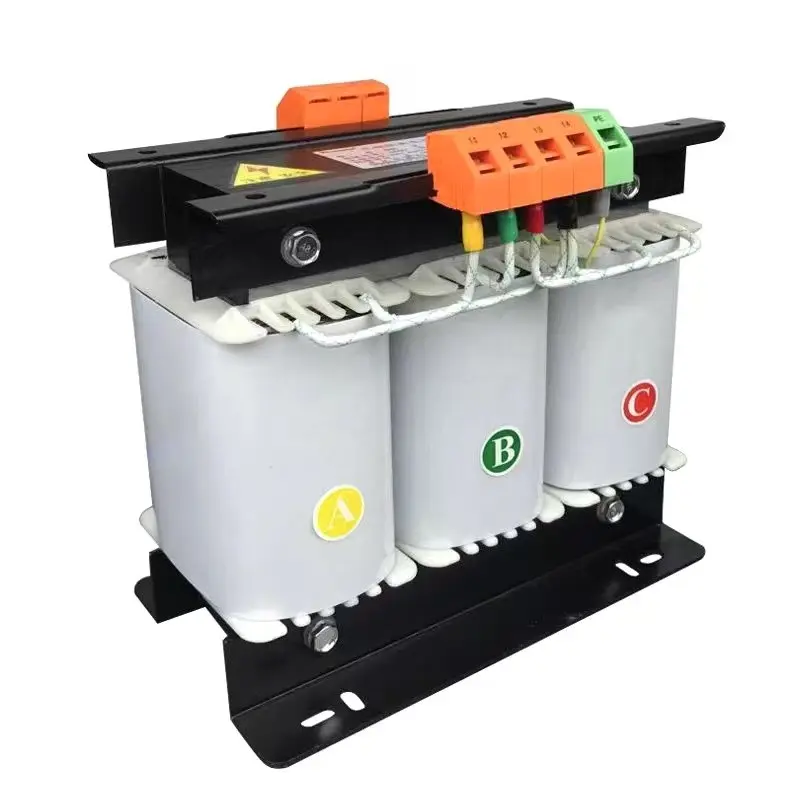

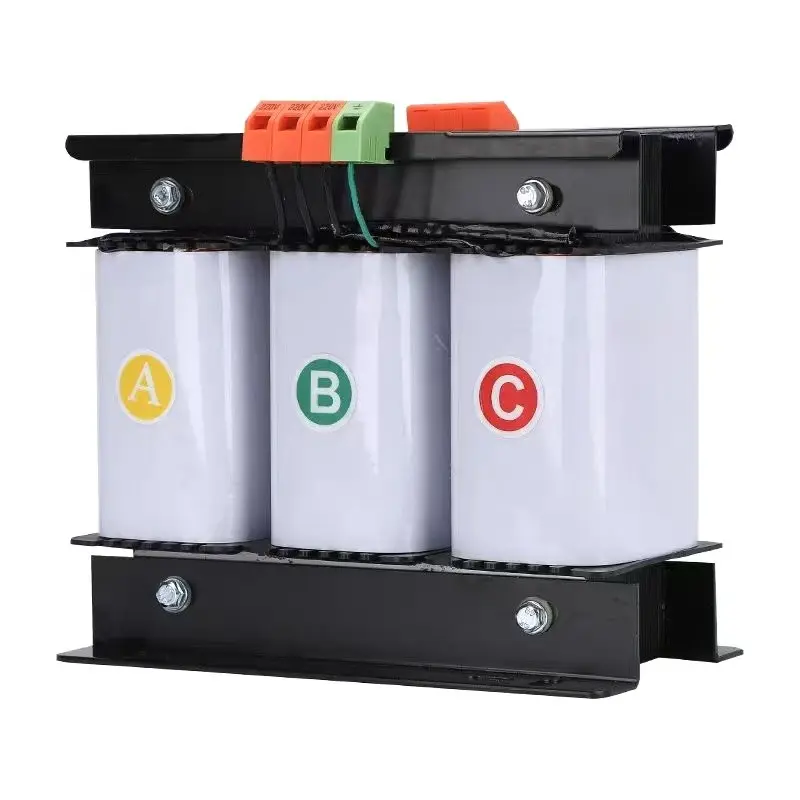

High-Efficiency 500va-1000Kva Three Phase Dry Type Control Transformer 415V 400V 380V
The SBK Series three-phase dry-type control transformer (500VA–1kVA) delivers compact, reliable voltage conversion for industrial control, automation and machinery applications. Available with configurable primary and secondary voltages (standard: 380V / 400V / 415V) and rated for 50Hz or 60Hz systems, this transformer is designed for low-voltage networks (<1kV). Its dry, air-cooled construction eliminates oil, reduces fire risk and lowers routine maintenance — making it a safe, cost-effective choice for motor control centers, CNC systems, PLC cabinets and distribution panels.

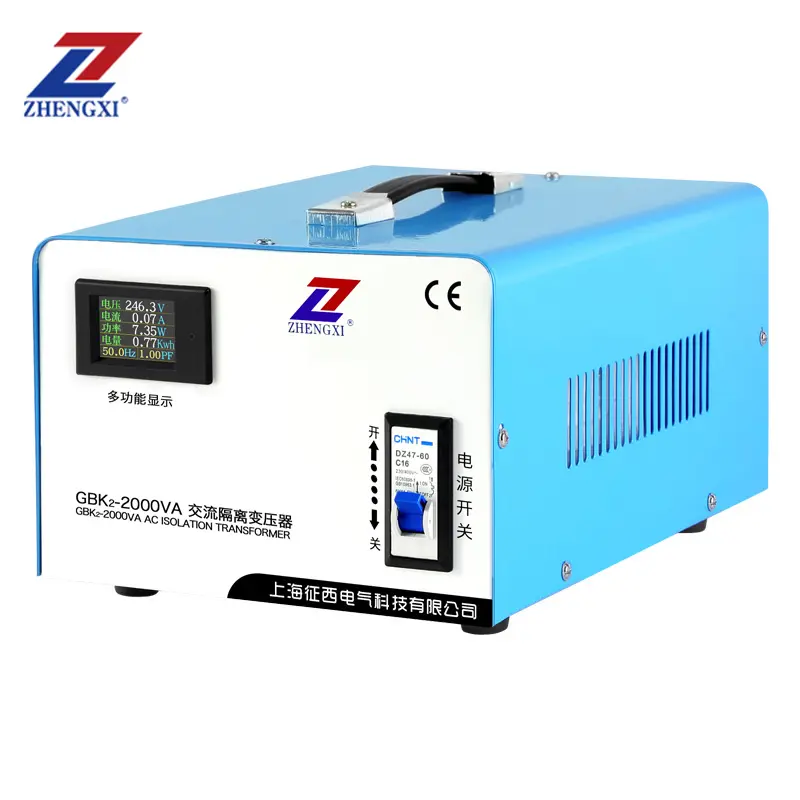

GBK2 Single Phase 220v To 220v Toroidal Balanced Isolation Transformer 300va-2Kva
